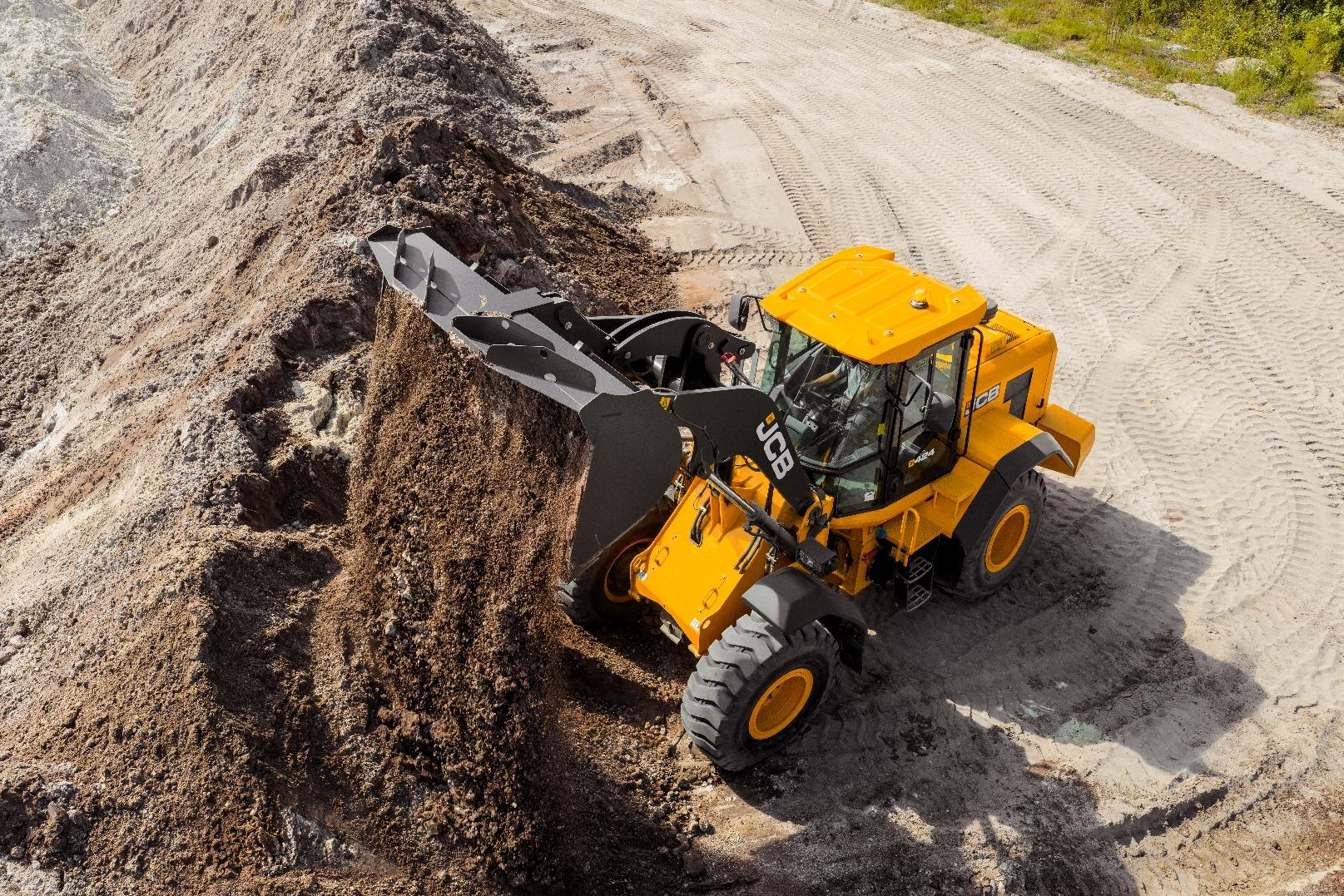

NEW JCB 424ZX Wheel Loader

The new JCB 424ZX Wheel Loader delivers a strong balance of power, loading performance and value. Positioned between the JCB 417 and 427, the 424ZX combines a 145 HP JCB EcoMAX engine, 2.6 yd³ standard bucket and powerful ZX loader arms in a versatile mid-range wheel loader.

The JCB 424ZX is available to order through ReadyQuip. Contact our team for availability and a quote.

Key Specifications

• Engine: JCB 4.8L EcoMAX, Tier 4 Final
• Maximum Power: 145 HP
• Maximum Torque: 413 lb-ft
• Transmission: ZF 4-speed automatic powershift
• Standard Bucket Capacity: 2.6 yd³
• Operating Weight: 29,205 lbs
• Payload: 9,717 lbs
• Full-Turn Tipping Load: 19,433 lbs
• Breakout Force: 32,328 lbf
• Pin Height: 12 ft 8 in
• Dump Height at 45°: 9 ft 7 in
• Maximum Forward Speed: 22.6 mph
• Tires: 20.5R25 radial

Standard Configuration

The JCB 424ZX is available in a one-spec configuration and comes standard with a quick coupler circuit for compatible direct or coupler-mounted attachments.

The machine includes a 2-year/2,000-hour standard warranty, with extended warranty options available through JCB Yellow Shield.

JCB 424ZX Available to Order from ReadyQuip

The new JCB 424ZX Wheel Loader is available to order through ReadyQuip in Northern Ontario. Contact us today to request a quote or learn more about the JCB 424ZX.
